BMP Baumeister pre-preg set for the PO1200 + PO1800 pre-preg Ovens

  • High-quality stainless steel accessories for pre-preg processing
  • Developed for the PO1200 and PO1800 pre-preg convection ovens
  • Modularly expandable for individual requirements
  • Universally applicable extraction pipes and accessories also for other oven models

Product description

Based on the “Baumeister” Pre-Preg accessory set for infrared ovens, this accessory program has been further developed for the Pre-Preg oven series. These components have also been developed from orthopaedic-technical practice.

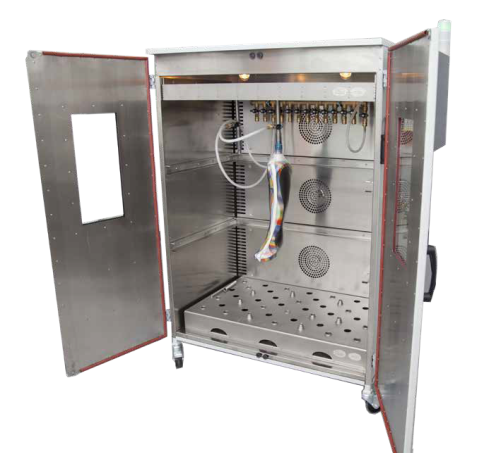

The suction tubes and holders are compatible with the infrared oven BMP sets and holders. The high-quality range of stainless steel accessories has been specially developed for use in the PO1200 and PO1800 Pre-Preg ovens and can be individually extended in various stages, allowing up to 12 models to be placed in the oven at the same time. In addition to a hanging shelf which is installed at the top of the ovens, there is also an extension shelf which can be placed at the bottom of the oven.

Request now

Products

  • Item: 18-500-300
    “Baumeister” BMP PO hanging file set for PO1200/1800: - 1 hanging shelf for fixed installation in the oven - 6 crossbars with square support for Baumeister Prepreg- - Suction pipes 1/2” and 3/4” - 6 socket pins with ball lock for fixing the square holders
  • Item: 18-500-301
    Bracket in hanging rack for 6- or 12-way distributor: - 2 crossbars with square mount - 2 square bar with hole and thread - 2 socket pins with ball lock for fixing the square holders - 2 threaded bolts - 2 fixing clamps
  • Item: 18-500-302
    6-way distributor for PO 1200/1800
  • Item: 18-500-303
    Hose set for 6-way distributor: - 6 heat-resistant silicone hoses with grommets at both ends - 1 connection hose with grommet and quick-release coupling
  • Item: 18-500-304
    12-way distributor for PO 1200/1800
  • Item: 18-500-305
    Hose set for 12-way manifold: - 12 heat-resistant silicone hoses with grommets at both ends - 1 connection hose with grommet and quick-release coupling
  • Item: 18-500-306
    Connection hose in the PO1200/1800 oven to the manifold with hose nozzle, quick-release coupling and 1/2” screw nipple
  • Item: 18-500-307
    “Baumeister” BMP PO positioning register set for PO1200/1800: - 1 positioning register with 46 positioning options for 3-way telescopic pipe inserts; 16 of which are permanently welded and optionally 8 loose pipe inserts to optimize positioning space.
  • Item: 18-500-308
    Prepreg suction pipe 1/2” with ball valve and quick-release coupling NW 7.2 with threaded insert and threaded pin for fixing the plaster model. -with threaded insert and pin for fixing the plaster model, square with hole for mounting in suspension crossbeam
  • Item: 18-500-309
    Prepreg suction pipe 3/4” (scope of delivery as 18-500-308)
  • Item: 18-500-310
    2-channel prepreg suction pipe 1/2” (scope of delivery as 18-500-308)
  • Item: 18-500-311
    3-channel prepreg suction pipe 1/2” (scope of delivery as 18-500-308)
